PET-500 Recycling Machine
DIANMEI
8477800000
Professional PET Bottle Washing Recycling Machine Line
Dianmei Machinery is a plastic recycling machine manufacturer, by integrating resources in plastic recycling machinery field, we manufacture PET bottle washing recycling machine line from bale opener, label remover, sorting table, screen trommel, crusher machine, hot washing tank, cold washing tank, crusher machine, film/flakes separator, drying system, color sorting machine. PET bottle washing machine is mainly to recycle waste PET bottles, water bottle, coca bottle etc. After the processing of pet bottle washing recycling machine, it will get clean pet flakes which can be used in fiber, polyester, yarn, pet sheet production. PET bottle recycling production line is an ideal equipment for environmental protection and regeneration of waste material .
We have pass through SGS, CE.
We have over 10 years experience in pet bottle recycling production line.
We provide turn key solution for waste PET bottle recycling machine project.
1. Recycling line is mainly used in waste PET mineral water bottle, barrel and other hard plastic recycling.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Recycling line will remove bottle label, and clean oil impurity. The output flakes are suitable for yarn spinning.

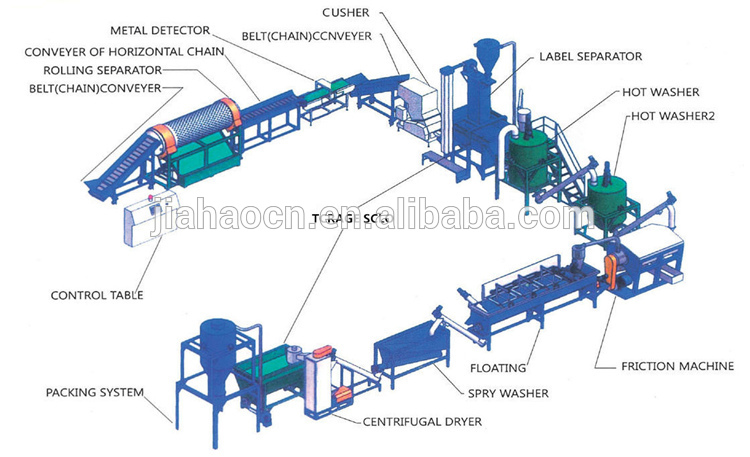

PET Bottle Washing Recycling Machine Line Process
Belt conveyer—Label cap separator machine—Crusher—Friction washer—Steam washer—Single screw rinsing washer—Certifuge dewater—Pipe drying system—Storage bunker—Electrical equipment
Capacity | 300kg/h | 500kg/h | 1000kg/h | 1500kg/h | 2000kg/h |
Workshop(L*W*H) | 30m*3m*3m | 37m*3m*3m | 45m*4m*4m | 53m*4m*5m | 65m*5m*5m |
Needed worker | 2-3persons | 3-4persons | 5-7persons | 8-10persons | 12-14persons |
Water supply (recycle use) | 1-2ton/h | 2-3ton/h | 4-5ton/h | 7-8ton/h | 10-11ton/h |
Final product quality | Moisture: max 5% Bulk density: 0.3G/CM3 Particle size: 10-16mm Total impurity: 300-450ppm |
After sales, we can offer to customers workers training and running test the machine and other machines repairing.
We will offer the customers after sales service in time once we get the after sales services request. We have a services team for customers around the world, all of them has the rich experience and small problems can be solve after calling.
