Transparent ABS, PP PE PS PMMA Sheet Production Machine

                     Transparent ABS PP PE PC PS PMMA Sheet Extrusion Line

Dianmei machinery offers ABS PP PE PC PS PMMA sheet extrusion line. The sheet extrusion line can produce mono-layer, multi-layer with max width 3000mm. PP PE PC PS PMMA sheet extrusion line is used in advertising industry, decoration field, refrigerator field, auto industry and building industry.

ABS PE PP PC PS PMMA Sheet Extruding Machine Feature

PE PP PS PMMA sheet extrusion machine line has following features

Width of Sheet: 500-3000mm

Thickness of Sheet: 0.15—30mm;

Max. Extrusion Capacity: 800kg per hour

Main Driving Motor: 250Kw

Max. Production Speed: 20m/min

For different application, the machine will add more auxiliary machine, silicone oil coating, side trimming can be winded for reusing again.

ABS PE PP PC PS PMMA Sheet Extrusion Line Application

ABS PE PP PC PS PMMA sheet has excellent processing capacity, high transparency, innocuity, no small and non pollution, easy to be recycled. It is particularly good for good or medicine packing.

Vacuum forming: food packager; toy box; stationery case; hardware packing

Obstruct packing: for electric components packing

Normal application: folded forming; collar lining; decoration material; file folder; document cover; credit card

Special application: medical instrument packing; medicine packing; industrial anti-sepsis; roast tray of microwave oven

ABS PE PP PC PS PMMA Sheet Production Line Characteristic

Machinery line is composed of extruder, screen exchanger, melt pump, die, three roll calender, downstream machinery line.

PE PP PC PS PMMA Sheet Extrusion Line Advantage

Our pet sheet making machine has following advantages

1- Extruder screw is optimized in mixing, plasticization, conveying the material.

2- Gear pump is to make an even output of material into die head

3- Die head with hanger type running channel can make the plastic sheet much even thickness before the sheet goes into the calendaring line.

4- Calendaring line has vertical type, horizontal type and inclined type, so that the die head can be as close to calendar roller as possible. The calender roller is heated by water with constant temperature controller units. Three calendar roller is controlled by three servo motor independently. Emergency stop button is at hand for safety consideration.

5- Haul off speed is synchronized with calendaring speed, extrusion speed.

6- Cutter machine is guillotine type cutter with clear cutting edge

7- Winder machine is PLC controlled with multi calculation the length. The winder friction force is calculated by plc control also.

8- SIEMENS PLC, Nord Servo Motor, DYNSICO Sensor, these quality parts are adopted to assure machine long life time, free headache of reparation and replacement.

9-  Whole metal frame adopts planer machine for processing to assure leveling.

PE PP PC PS PMMA Sheet Making Machine Technical Data

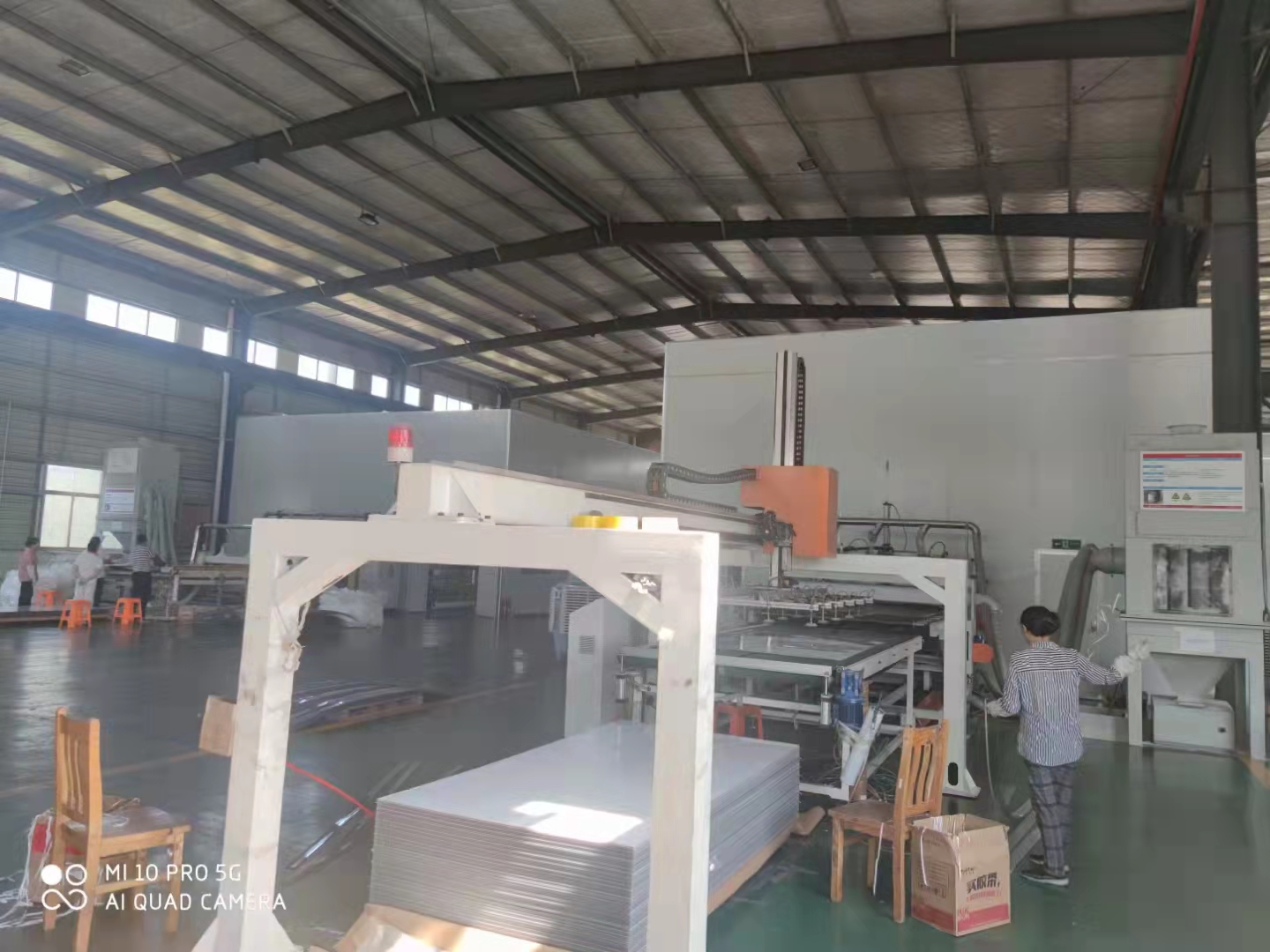

PC Sheet Production Machine Photo
