Biodegradable Plastic PLA Pellets Making Machine Manufacturer
DIANMEI
8477800000
Biodegradable Plastic PLA Pellets Making Machine
Zhangjiagang Dianmei Machihery Co.,Ltd was founded in year 2015. The workshop covers an area of 1000 square meters. Our company is a professional producer for plastic granulation machine. Since its foundation, it aims at manufacturing PBAT biodegradable pellet making machine, plastic ABS modification machine, fiberglass reinforcement compounding pelletizing machine, cable compounding pelletizing machine, alloy plastics granulation machine. It includes powder coating granulation machine, plastic compactor and two stage granulation machine, plastic wet pp filament granulation machine with magnetic heating system, plastic washed pp raffia compactor and granulation machine, twin screw compounding granulation machine, pet flakes granulation machine, pe filler masterbatch granulation machine, pvc granulation machine, PLA compounding and granulation machine, Bio degradable material granulation machine, plastic filler compounding granulation machine, pp masterbatch granulation machine, etc. We focus on processing various material PE, PP, CaCO3, PMMA, PS, MS, EBS, EVA, BOPP, PET, PA, ABS, Carbon Black, etc. By now we have developed both domestic and overseas market, canada, USA, north africa, asia, Europe etc . Our annual production line turns over is 20 lines.
During the developing, we abide by the principles of keeping up-to-date the techniques, qualify control during the production and a well responding after sales service. Our goal is to build a stable running machine, that is top priority.
. Screw dosing feeder to assure feeding accuracy; it is also control by inverter
. Extruder with assembly type screw for different combination to process different material
. Vacuum system to outlet violate gas so as to make a quality pellets
. Different cutting system for choose, from noodle cutting, underwater cutting, water ring cutting, water flush cutting, cooling table cutting etc
Model | SJ-20 | SJ-35 | SJ-50 | SJ-65 | SJ-75 | SJ-95 |
Screw Diameter: mm | 21.7 | 35.6 | 50.5 | 62.4 | 71 | 91 |
Length Diameter Ratio | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 |
Main Motor Power (Kw) | 4-5.5 | 22-45 | 75-110 | 110-185 | 160-280 | 180-355 |
Max.Screw Speed (RPM) | 600 | 600 | 600 | 600 | 600 | 600 |
Reference Output (KG/H) | 5-20 | 20-80 | 80-200 | 150-350 | 300-600 | 700-1500 |
Dianmei service line:008613773290740

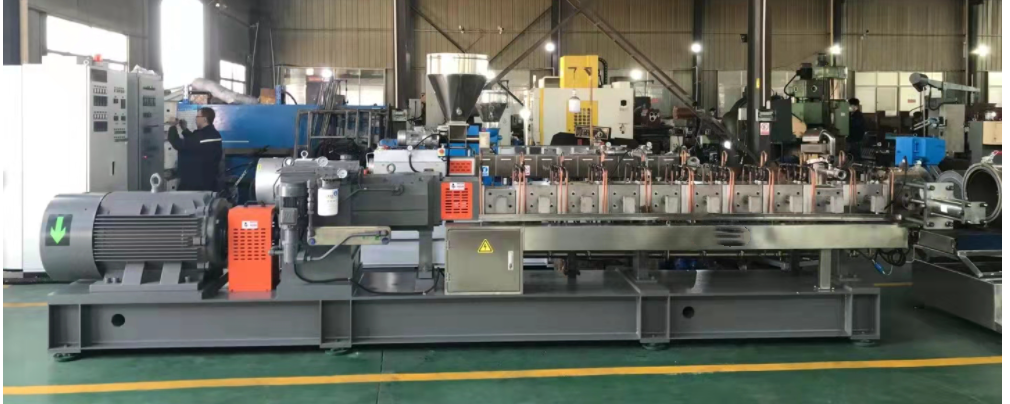

The machine includes mixing machine, twin screw extruder machine, under water pelletizing system
Biodegradable Plastic PLA Pellets Making Machine
Zhangjiagang Dianmei Machihery Co.,Ltd was founded in year 2015. The workshop covers an area of 1000 square meters. Our company is a professional producer for plastic granulation machine. Since its foundation, it aims at manufacturing PBAT biodegradable pellet making machine, plastic ABS modification machine, fiberglass reinforcement compounding pelletizing machine, cable compounding pelletizing machine, alloy plastics granulation machine. It includes powder coating granulation machine, plastic compactor and two stage granulation machine, plastic wet pp filament granulation machine with magnetic heating system, plastic washed pp raffia compactor and granulation machine, twin screw compounding granulation machine, pet flakes granulation machine, pe filler masterbatch granulation machine, pvc granulation machine, PLA compounding and granulation machine, Bio degradable material granulation machine, plastic filler compounding granulation machine, pp masterbatch granulation machine, etc. We focus on processing various material PE, PP, CaCO3, PMMA, PS, MS, EBS, EVA, BOPP, PET, PA, ABS, Carbon Black, etc. By now we have developed both domestic and overseas market, canada, USA, north africa, asia, Europe etc . Our annual production line turns over is 20 lines.
During the developing, we abide by the principles of keeping up-to-date the techniques, qualify control during the production and a well responding after sales service. Our goal is to build a stable running machine, that is top priority.
. Screw dosing feeder to assure feeding accuracy; it is also control by inverter
. Extruder with assembly type screw for different combination to process different material
. Vacuum system to outlet violate gas so as to make a quality pellets
. Different cutting system for choose, from noodle cutting, underwater cutting, water ring cutting, water flush cutting, cooling table cutting etc
Model | SJ-20 | SJ-35 | SJ-50 | SJ-65 | SJ-75 | SJ-95 |
Screw Diameter: mm | 21.7 | 35.6 | 50.5 | 62.4 | 71 | 91 |
Length Diameter Ratio | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 |
Main Motor Power (Kw) | 4-5.5 | 22-45 | 75-110 | 110-185 | 160-280 | 180-355 |
Max.Screw Speed (RPM) | 600 | 600 | 600 | 600 | 600 | 600 |
Reference Output (KG/H) | 5-20 | 20-80 | 80-200 | 150-350 | 300-600 | 700-1500 |
Dianmei service line:008613773290740
The machine includes mixing machine, twin screw extruder machine, under water pelletizing system
